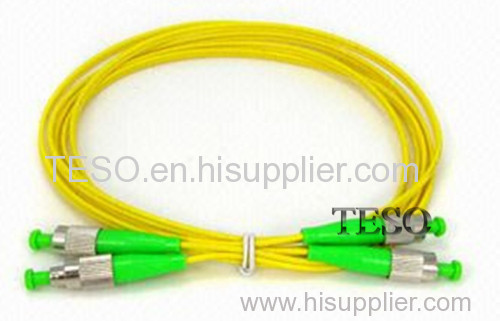

High Speed Fiber Optic Patch Cord FC For Networks

Payment Terms:	T/T,L/C,D/A,D/P
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land,Air

Packing: 1pcs/bag

Application: Networking

Brand Name: TESO

Mode:: Multi, Single

Production Capacity: 1000000pcs/month

Delivery Date: 3-5days

Type: Optical Fiber

Certification: CE, RoHS

1 fc fiber optic patch cord.
2. Simplex or duplex, Single mode or multi mode.
3. UPC or APC end-face finishing.
4. OD:3.0mm,2.0mm or 0.9mm.

High Speed Fiber Optic Patch Cord FC For Networks

Quick Detail

1 fc fiber optic patch cord.

2. Simplex or duplex, Single mode or multi mode.

3. UPC or APC end-face finishing.

4. OD:3.0mm,2.0mm or 0.9mm.

5.Any length will be available.

Applications:

＊CATV

＊Video

＊Active Device Termination

＊Premise Installations

＊Telecommunication Networks

＊Local Area Networks (LANs)

＊Data processing networks

＊Wide Area Networks (WANs)

＊Industrial media & military

Features

＊Threaded, key-oriented coupling mechanism which allows repeatable, low-loss connections.

＊Simplex or duplex and multi fiber assemblies available in both standard and custom configurations.

＊Compliant with Telcordia GR-326-CORE specification.

＊One-piece construction & pull-proof design.

＊Free-floating ceramic ferrule.

Description:

＊Fiber optic patch cord are used for linking the equipment and components in the fiber optic network.

＊They are with various kinds of fiber optic connector types.

＊The fiber optic patch cord types are classified by the fiber optic connector types. For example, we name FC fiber optic patch cord because this cable is with ST fiber optic connector.

＊There are PC,UPC,APC type fiber patch cord. They are different because of the polish of fiber connectors.

＊Fiber optic patch cord are with various kinds of cables PVC, Riser, Plenum, OFNR, OFNP, LSZH (LSOH), 10 Gig Aqua.

＊There are simplex, duplex and multi fiber cable assemblies, and there are ribbon fan out fiber cable assemblies and bundle fiber optic cable assemblies.

＊Typical fiber optic patch cord cable diameter can be 0.9mm, 2mm, or 3mm.

Specifications:

Parameters	Test Condition			Value(dB)
Parameters	Test Condition			Multi mode	Single mode
Insertion Loss	0.85/1.3um or 1.31/1.55um			0.3	0.3
Return Loss	0.85/1.3um or 1.31/1.55um			35	50 (APC 60)
Interchangeability	Connect Randomly			<0.2	<0.2
Vibration	5~50Hz, 1.5mm Amplitude			<0.1	<0.1
Tensile Strength	0~15Kgf (0.9mm Exception)			<0.1	<0.1
High Temperature	+85	During 100 Hours		<0.2	<0.2
Low Temperature	-40	During 100 Hours		<0.2	<0.2
Temperature Cycle	-40	~+85	during 5 Cycles	<0.2	<0.2
Humidity	25	~+65	93%R H, 100 hours	<0.2	<0.2
